Crew Seat

Description

Taking into account the unique requirements of the commander, driver and gunner positions, our flexible, customizable crew seats have intuitive access to seat adjustment options, easy ingress and egress, and emergency operation capabilities. The seat’s comfortable ergonomic design allows for effortless operation of the vehicle controls.

Mobius’ crew seats provides the highest level of performance in the most extreme conditions. Implementing an innovative design approach, this battle-proven system offers high functionality and is designed to meet the requirements of various platforms and threats.

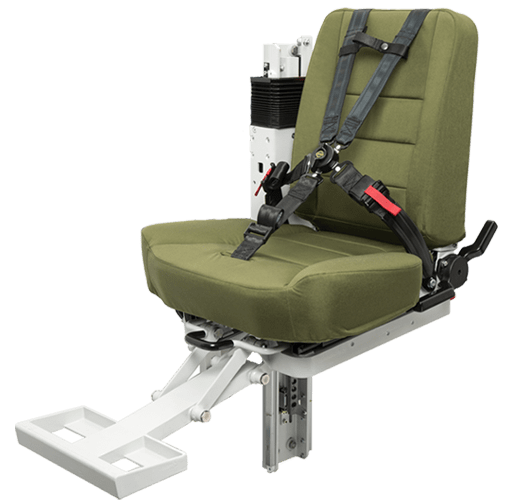

Military crew seat

Weight

45-55 kg

Height adjustment

Standard – 430 mm

Can be designed up to 1000 mm

Fore-aft adjustment

Standard – 150 mm

Can be designed up to 250 mm

Additional Adjustment options

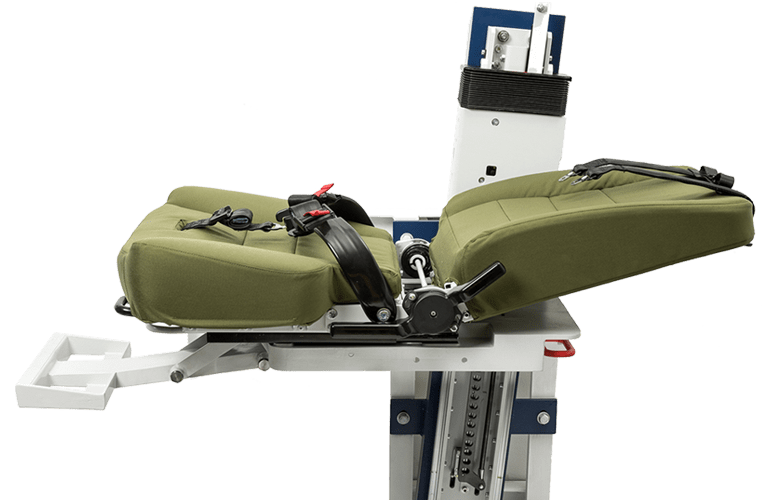

Reclining back

Adjustable headrest (optional, not shown in the pictures)

Footrest

Yes. Optional

Energy Absorption

Ergonomic design suitable for 5th -95th percentile

Safety

FMVSS 207/ 210

FMVSS 209

FMVSS 302

ECE Compliance

Seat belts

4/ 5 point seat belt

Mounting options

Wall
